TP-Link TL-SG1008P V4 | 8 Port Gigabit PoE SW
| HARDWARE FEATURES | |
|---|---|

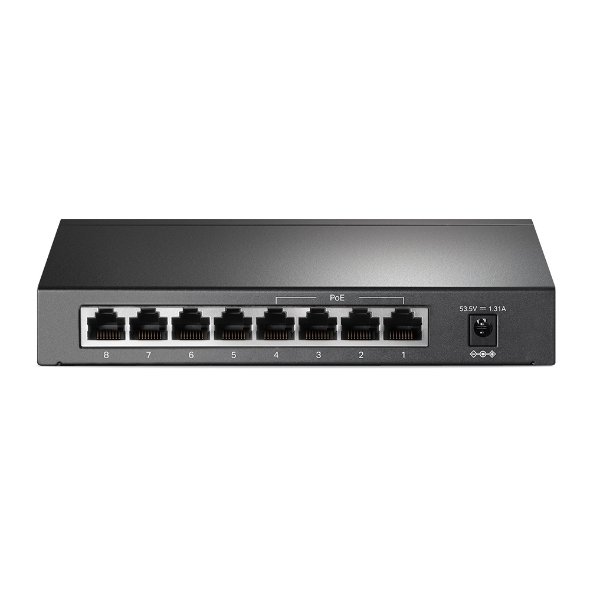

| Interface | 8× 10/100/1000 Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External power adapter (Output: 54VDC / 1.3A) |
| Packet Forwarding Rate | 11.904 Mpps |

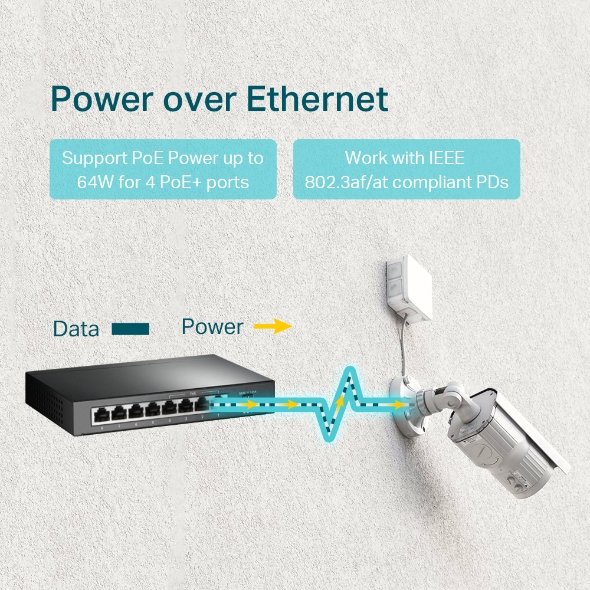

| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: ports 1–4 • Power budget for all PoE ports: 64 W |
| Mac Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 16 Gbps |
| Dimensions (W x D x H) | 6.7 × 3.9 × 1.1 in (171×98×27 mm) |
| Max Power Consumption | • 5.4 W (with no PD connected) • 75 W (with 64W PD connected) |
| Max Heat Dissipation | • 18.4 BTU/h (with no PD connected) • 225.8 BTU/h (with 64 W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Transmission Method | Store-And-Forward |
| Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs • IGMP Snooping • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control • 802.1p/DSCP QoS |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • TL-SG1008P • Power Adapter • Installation Guide |
