• Wi-Fi 6 Technology: Archer AX12 comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity and reduced network congestion.
• Next-Gen 1.5 Gbps Speeds: Archer AX12 dual-band router reaches even faster speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)¹⁵
• Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA and MU-MIMO technology while simultaneously reducing lag.²⁴
• More Reliable Coverage:  Achieve the strongest, most reliable WiFi coverage with Archer AX12 as it focuses signal strength to your devices using Beamforming technology and four antennas.
• Increased Battery Life: Target Wake Time technology reduces your devices’ power consumption to extend their battery life.³
• Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.
• Backward Compatible: Archer AX12 supports all previous 802.11 standards and all WiFi devices.



SPECIFICATIONS:

SECURITY

Network Security

SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

---

Guest Network

1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

---

VPN Server

OpenVPN
PPTP

---

WiFi Encryption

WPA2-PSK
WPA2-PSK/WPA-PSK
WPA3-Personal
WPA3-Personal/WPA2-PSK
WPA2-Enterprise
WPA/WPA2-Enterprise encryptions

---

WIRELESS

Standards

Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

---

WiFi Speeds

AX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n)

---

WiFi Range

2-3 Bedroom Houses:

4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

---

WiFi Capacity

High:

Dual-Band
Allocate devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

4 Streams
Connect your devices to more bandwidth

---

Working Modes

Router Mode
Access Point Mode

---

HARDWARE

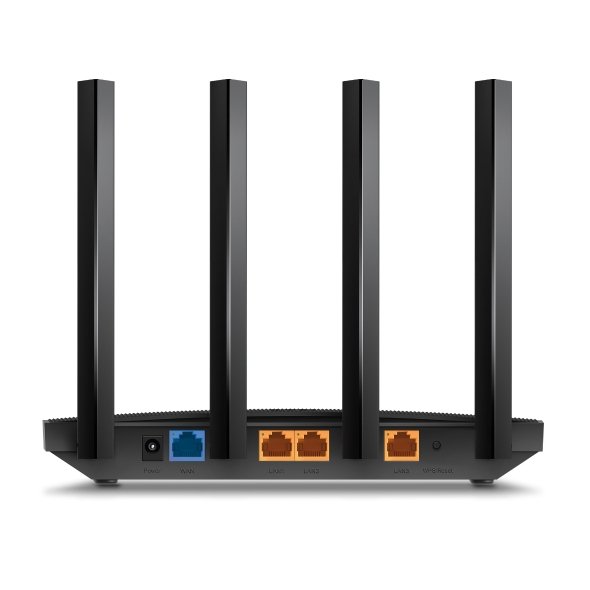

Ethernet Ports

1× Gigabit WAN Port
3× Gigabit LAN Ports

---

Buttons

WPS/Reset Button

---

Power

12 V ⎓ 1 A

---

SOFTWARE

Protocols

IPv4
IPv6

---

Parental Controls

URL Filtering
Time Controls

---

WAN Types

Dynamic IP
Static IP
PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

---

Quality of Service

QoS by Device

---

Cloud Service

Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS

---

NAT Forwarding

Port Forwarding
Port Triggering
DMZ
UPnP

---

IPTV

IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

---

PHYSICAL

Dimensions (W×D×H)

8.5 × 4.6 ×1.3 in
(215 × 117 × 32 mm)

---

Package Contents

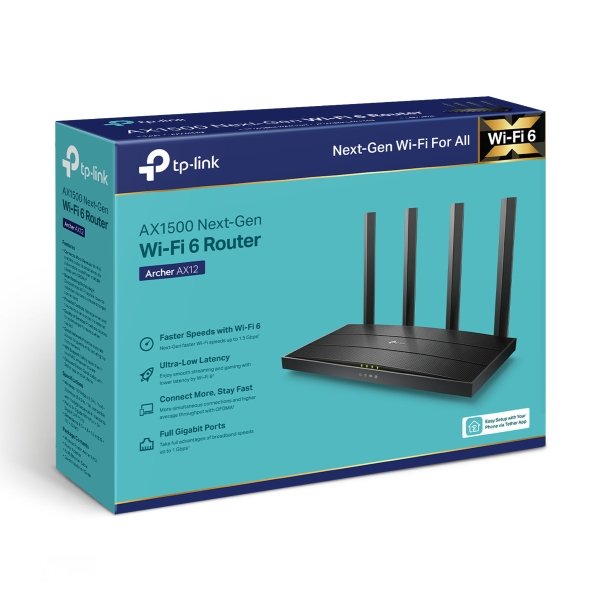

Wireless Router Archer AX12
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

---
