TP-LINK Archer MR200 AC750 Dual Band Wi-Fi 4G LTE Router

SPECIFICATIONS:

Hardware

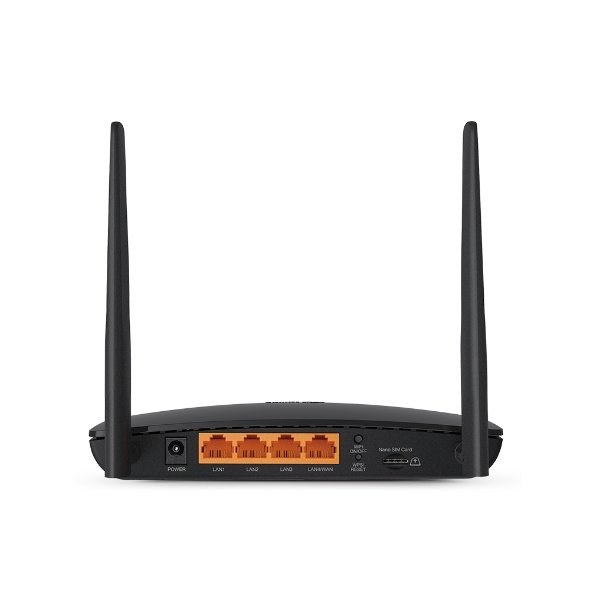

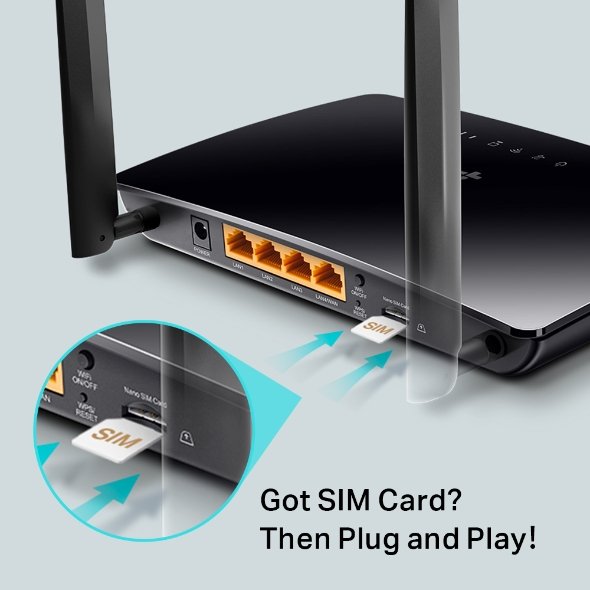

• Interface: 3×10/100Mbps LAN Ports, 1×10/100Mbps LAN/WAN Port, 1×Nano SIM Card Slot

---

• Buttons: WPS/RESET Button, Wi-Fi ON/OFF Button

---

• Antennas: 2 Detachable External 4G LTE Antennas

---

• External Power Supply: 12V/1A

---

• Dimensions (W x D x H): 6.85 × 4.9 × 1.32 in (174 × 124.5 × 33.5 mm)

---

Wireless

• Network Type:
  4G: FDD-LTE:B1/B3/B7/B8/B20(2100/1800/2600/900/800 MHz)
  TDD-LTE: B38/B40/B41(2600/2300/2500 MHz)
  3G: DC-HSPA+/HSPA/UMTS:B1/B8(2100/900 MHz)

---

• Wireless Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

---

• Frequency: 2.4 GHz and 5 GHz

---

• Signal Rate: 300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz

---

• EIRP (CE): < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)

---

• Reception Sensitivity:
  5 GHz:
  11a 54M: -78 dBm
  11ac VHT20 MCS0: -92 dBm 11ac VHT20 MCS8: -72 dBm
  11ac VHT40 MCS0: -90 dBm 11ac VHT40 MCS9: -67 dBm
  11ac VHT80 MCS0: -87 dBm 11ac VHT80 MCS9: -64 dBm
  2.4 GHz:
  11g 54M: -74 dBm
  11n HT20 MCS0: -91 dBm 11n HT20 MCS7: -72 dBm
  11n HT40 MCS0: -88 dBm 11n HT40 MCS7: -69 dBm

---

• Wireless Function: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics

---

• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

---

SPECIFICATIONS:

Software

• Operating Modes: 3G/4G Router, Wireless Router

---

• WAN Type: Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access)

---

• DHCP: Server, DHCP Client List, Address Reservation

---

• Quality of Service: Bandwidth Control

---

• Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ

---

• Dynamic DNS: DynDns, NO-IP

---

• VPN Server: PPTP VPN, OpenVPN

---

• Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding

---

• Protocols: IPv4, IPv6

---

• Management: Access Control, Local Management, Remote Management, reboot schedule

---

• Guest Network: 2.4 GHz guest network x 1, 5 GHz guest network x 1

---

Others

• Certification:
  CE, RoHS

---

•  Requirements:
  Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other
  JavaScript-enabled browser
  Nano SIM Card

---

• Environment:
  Operating Temperature: 0℃~40℃ (32℉ ~104℉)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing

---

• Package Contents
  AC750 Wireless Dual Band 4G LTE Router Archer MR200
  RJ45 Ethernet Cable
  Power Adapter
  Quick Installation Guide

---
