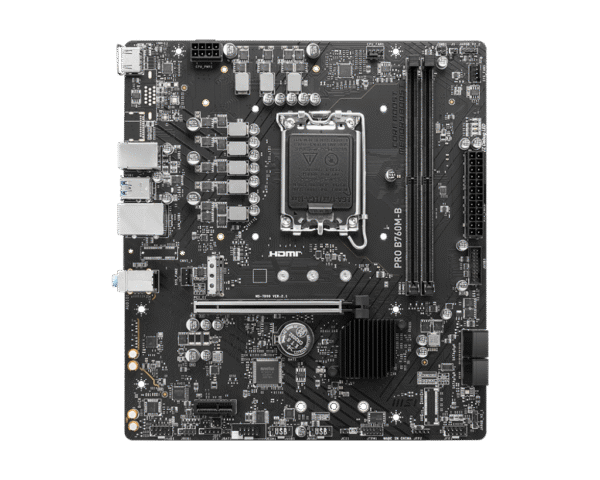

MSI PRO B760M-B DDR4 Motherboard

FEATURES:

• Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors for LGA 1700 socket
• Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
• Core Boost: With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning-Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
• 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

SPECIFICATIONS:

Model Name: PRO B760M-B DDR4

CPU Support:
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel®
Pentium® Gold and Celeron® Processors

CPU Socket: LGA 1700

Chipset: Intel® B760 Chipset

Expansion Slots:
1x PCIe 4.0 x16 slot
1x PCIe 4.0 x1 slot

Display Interface:

Support 4K@60Hz as specified in HDMITM 2.1 – Requires
Processor Graphics

Memory Support:  2 DIMMs, Dual Channel DDR4-4800+MHz(OC)

Storage:
1x M.2 Gen4 x4 64Gbps slots,
4x SATA 6Gbps ports

USB ports:

6x USB 3.2 Gen 1 5Gbps (4 Type-A),
6x USB 2.0

LAN: Realtek® RTL8125B 2.5G LAN

Audio: 8-Channel (7.1) HD Audio with Audio Boost

BACK PANEL PORTS

1. HDMI™
2. Keyboard / Mouse
3. 2.5G LAN
4. Audio Connectors
5. USB 2.0
6. USB 3.2 Gen 1 5Gbps (Type-A)

LINK:MSI PRO B760M-B
