MSI GeForce RTX™ 5070 Ti 16G VENTUS 3X OC

Features:

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• SFF-Ready Enthusiast GeForce Card
• Core Clock:
  Extreme Performance: 2497 MHz (MSI Center)
  Boost: 2482 MHz

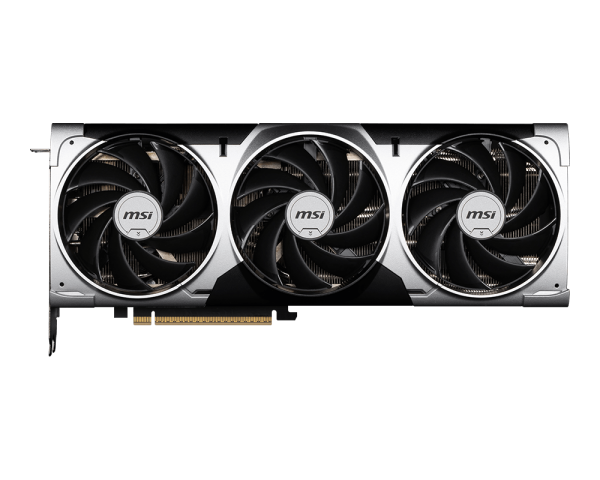

• TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
• Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
• Core Pipe feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

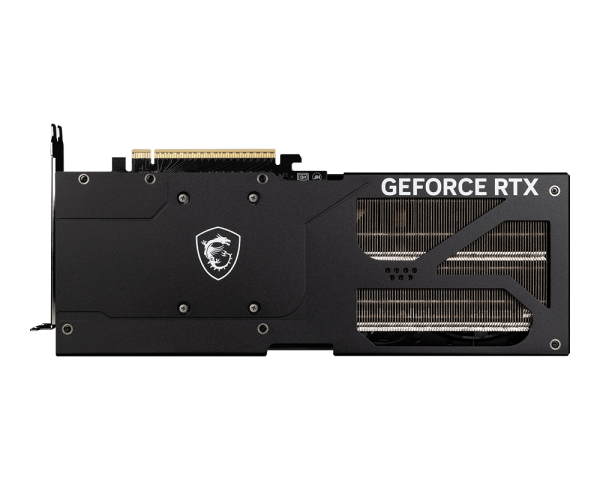

• Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

---

---

SPECIFICATIONS:

• Marketing Name: GeForce RTX™ 5070 Ti 16G VENTUS 3X OC

---

• Model Name: G507T-16V3C

---

• Graphics Processing Unit: NVIDIA® GeForce RTX™ 5070 Ti

---

• Interface: PCI Express® Gen 5

---

• Core Clocks:

Extreme Performance: 2497 MHz (MSI Center)
Boost: 2482 MHz

---

• CUDA^® CORES: 8960 Units

---

• Memory Speed: 28 Gbps

---

• Memory: 16GB GDDR7

---

• Memory Bus: 256-bit

---

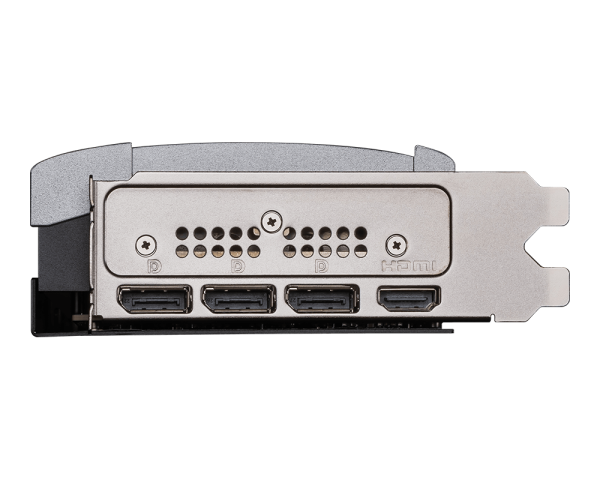

• Output:

DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

---

• HDCP Support: Y

---

• Power consumption: 300W

---

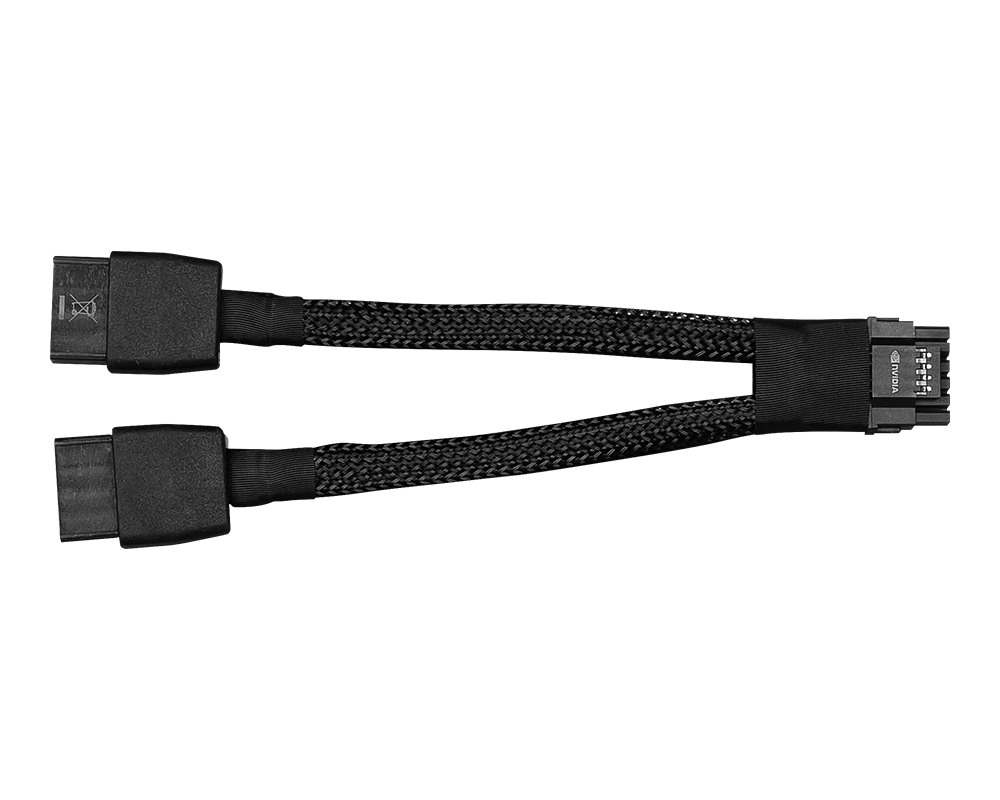

• Power connectors: 16-pin x1

---

• Recommended PSU: 750W

---

• Card Dimension (mm): 303 x 121 x 49 mm

---

• Weight (Card / Package): 1073 g / 1566 g

---

• DirectX Version Support: 12 Ultimate

---

• OpenGL Version Support: 4.6

---

• Maximum Displays: 4

---

• G-SYNC^® technology: Y

---

• Digital Maximum Resolution: 7680 x 4320

---
