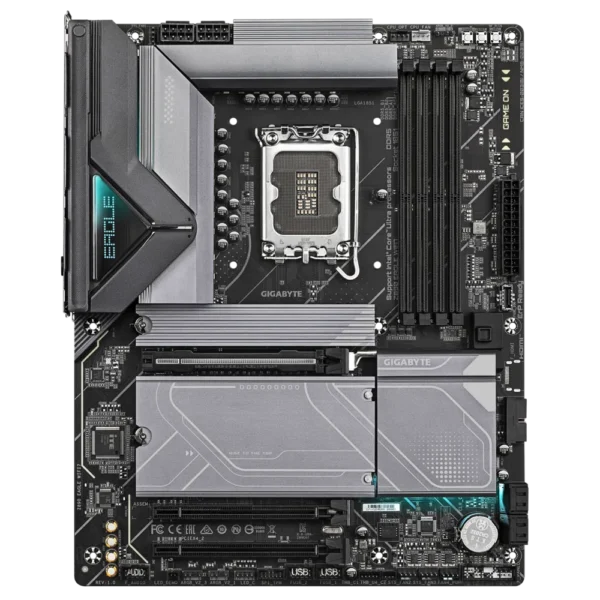

GIGABYTE Z890 EAGLE WIFI7 Motherboard
Features:
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 14+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- Premium Compatibility: 4*DDR5 with XMP Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click: M.2 heatsinks with screwless design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage: 4*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking: 2.5GbE LAN & Wi-Fi 7
- Extended Connectivity: USB4 Type-C with DP-Alt, DisplayPort
- PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
SPECIFICATIONS:
CPU:
Intel® Core™ Ultra processors (Series 2)
Chipset:
Intel® Z890 Express Chipset
Memory:
4x DDR5 DIMM slots, up to 256 GB, supports up to 9200 MT/s (OC), Dual Channel, XMP support
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
– 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz
– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
– 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz
– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
Audio:
Realtek® Audio CODEC, High-Definition Audio, 2/4/5.1/7.1-channel support, High-End Audio Capacitors, Audio Noise Guard
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module:
2.5GbE LAN, Wi-Fi 7 (802.11be), Bluetooth 5.4
Expansion Slots:
1x PCIe 5.0 x16 (with PCIe UD Slot X), 2x PCIe 4.0 x4 slots
Storage Interface:
4x M.2 Slots (1x PCIe 5.0 x4, 3x PCIe 4.0 x4), 4x SATA 6Gb/s connectors
USB:
Rear: 1x USB4 Type-C, 2x USB 3.2 Gen 2 Type-A, 3x USB 3.2 Gen 1, 4x USB 2.0; Internal: 1x USB 3.2 Gen 2 Type-C header, 1x USB 3.2 Gen 1 header, 2x USB 2.0 headers
Internal I/O Connectors:
- 1 x 24-pin ATX main power connector
- 2 x 8-pin ATX 12V power connectors
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 3 x system fan headers
- 1 x system fan/water cooling pump header
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 4 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- 1 x power button
- 1 x Q-Flash Plus button
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper

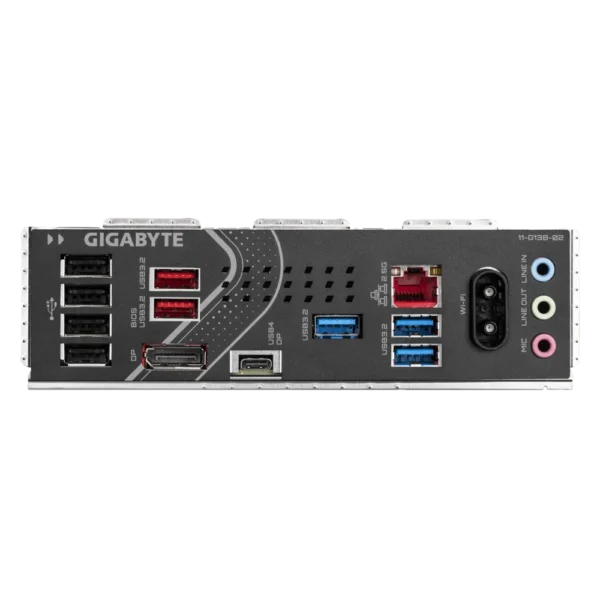

Back Panel Connectors:
- 1 x USB4® USB Type-C® port (DisplayPort (Note))
- 2 x USB 3.2 Gen 2 Type-A ports (red)
- 3 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x DisplayPort (Note)
- 2 x antenna connectors (2T2R)
- 1 x RJ-45 port
- 3 x audio jacks
BIOS:
AMI UEFI BIOS, 256 Mbit flash, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, Q-Flash, Q-Flash Plus, Smart Backup
Unique Features:
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Operating System:
Support for Windows 11 64-bit
Form Factor:
ATX Form Factor; 30.5cm x 24.4cm
