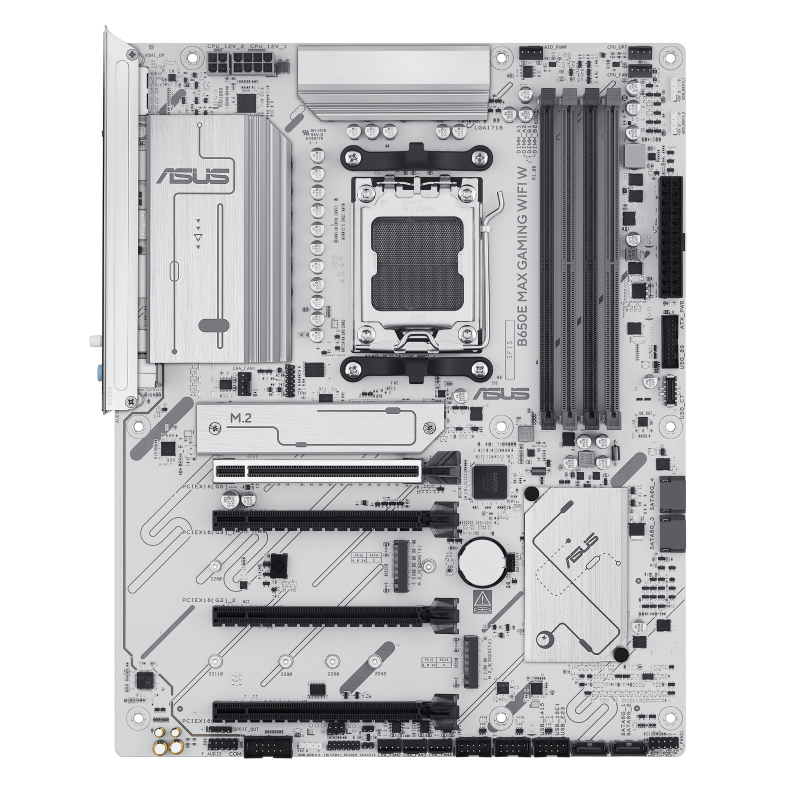

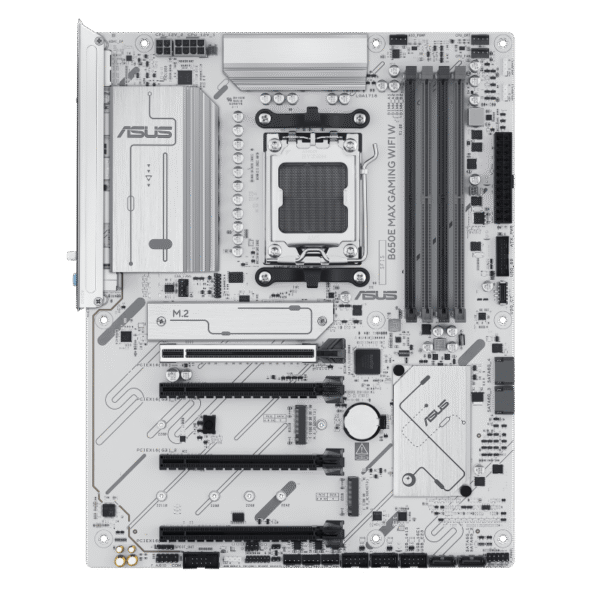

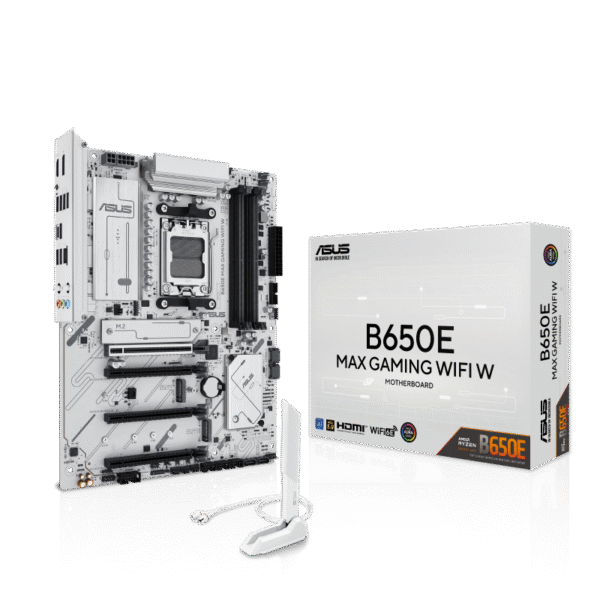

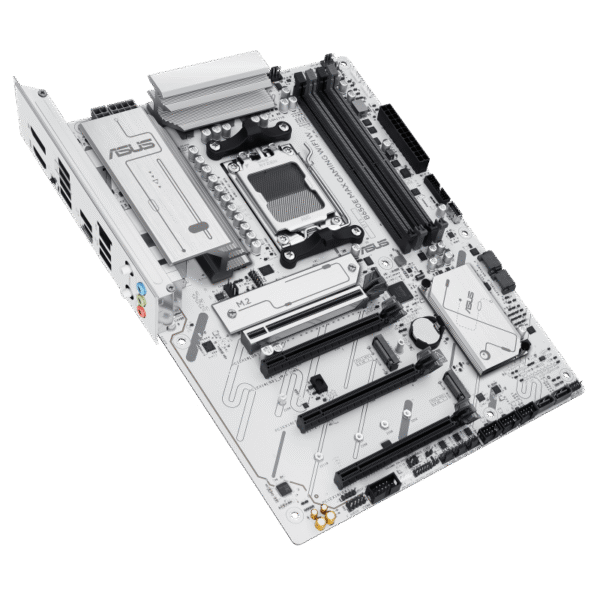

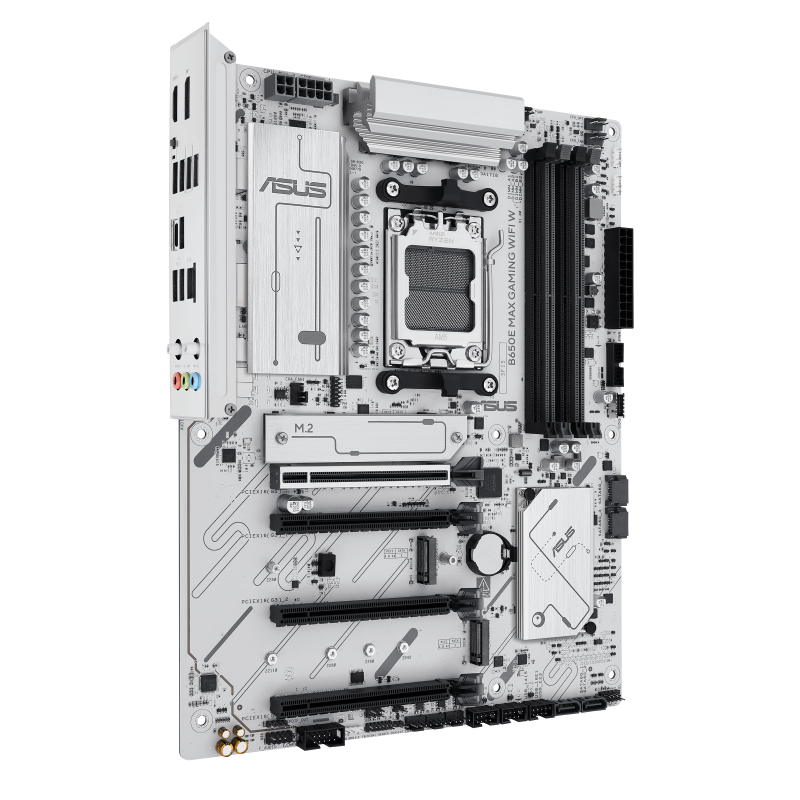

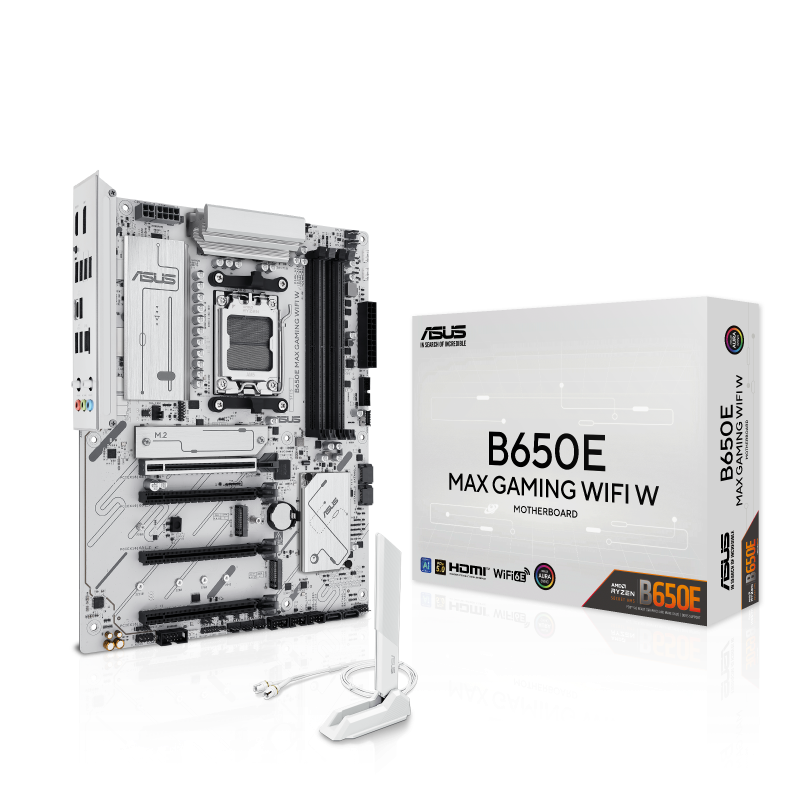

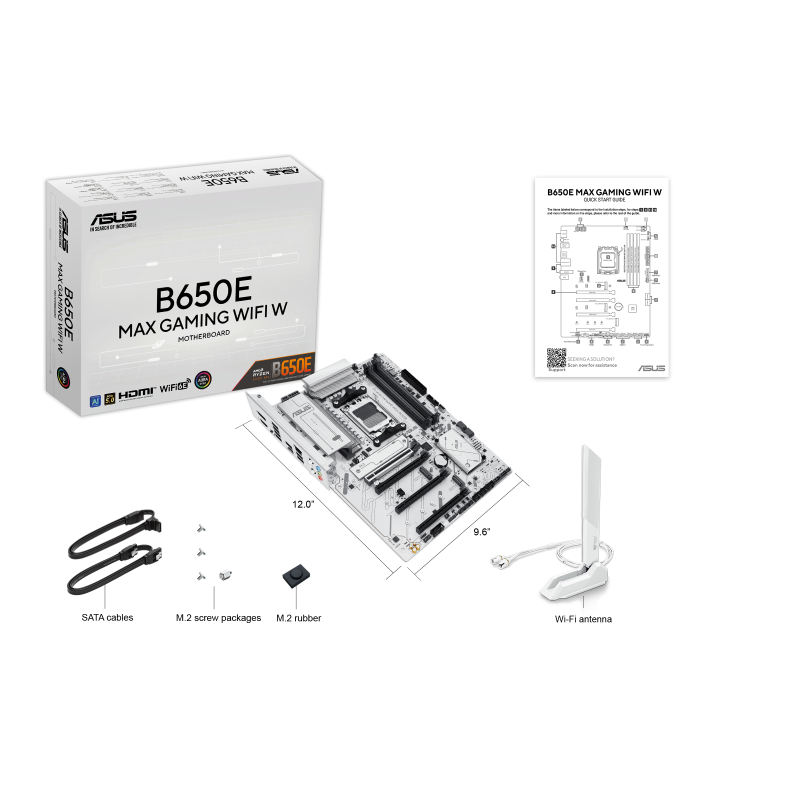

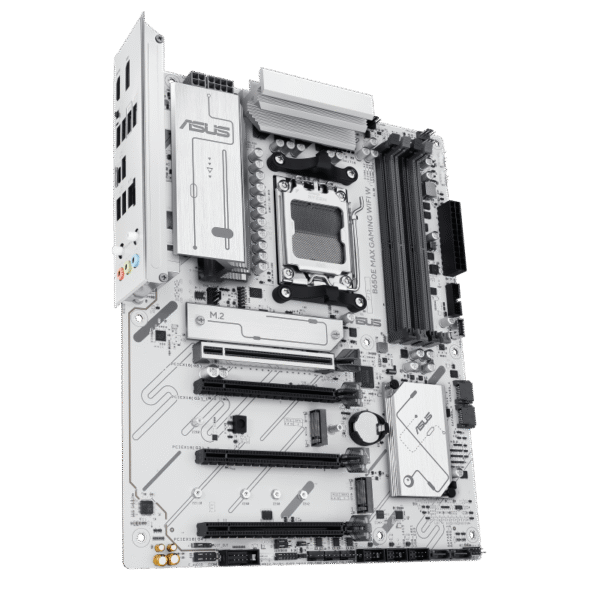

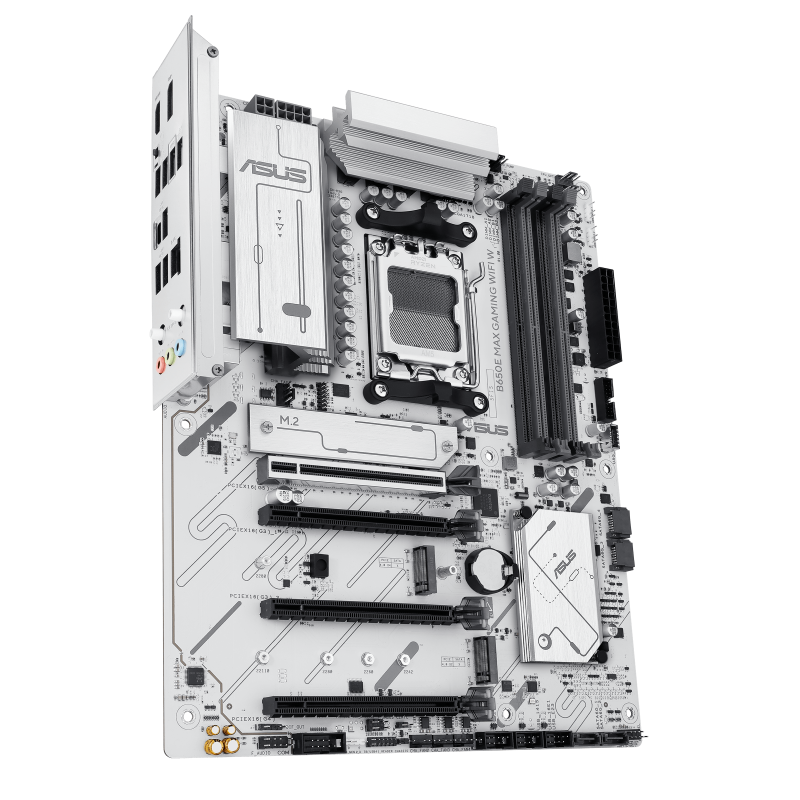

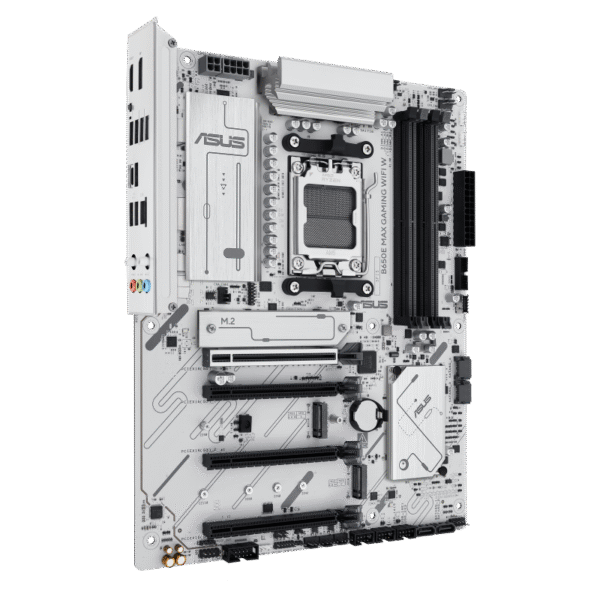

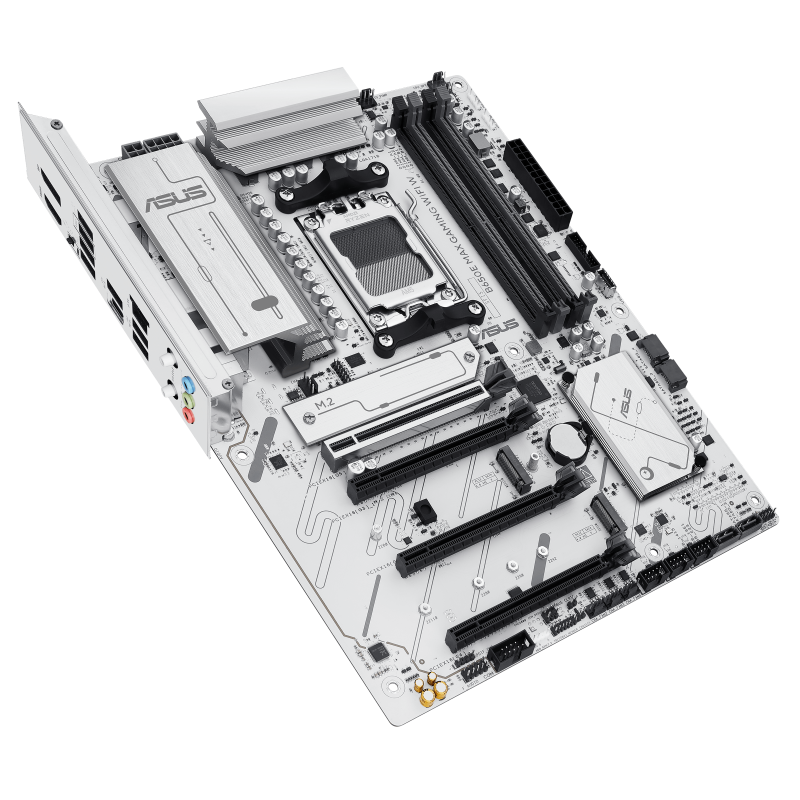

ASUS B650E MAX GAMING WIFI W Motherboard
Features:
- AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Ultrafast Connectivity: Wi-Fi 6E, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A & Type-C® ports, and front USB 5Gbps Type-C® support
- Comprehensive Cooling: VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+

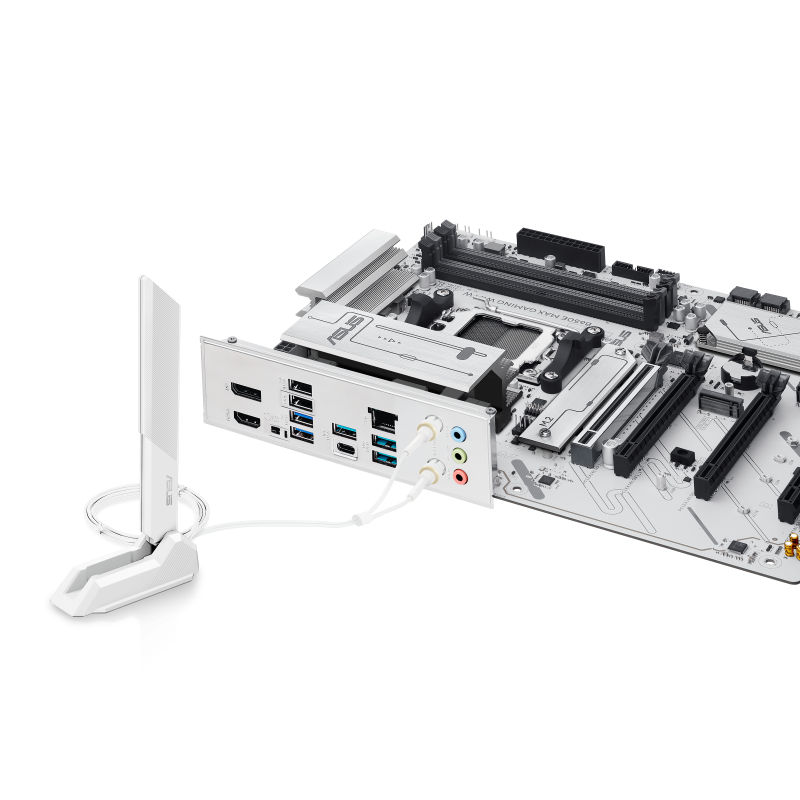

- DIY Friendly Design: Pre-mounted I/O shield, BIOS FlashBack™, Q-Antenna, Q-LED Core
- Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
- CEC Tier II ready
SPECIFICATIONS:
Model:
CPU:
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset:
AMD B650 Chipset
Memory:
4x DDR5 DIMM, up to 256GB, 8000+ MT/s (OC), Dual Channel, ECC & EXPO™ supported
Graphics:
1x DisplayPort 1.4 (8K@30Hz), 1x HDMI 2.1 (4K@60Hz)
Expansion Slots:
1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
Storage:
3x M.2 (PCIe 5.0/4.0/4.0), 4x SATA 6Gb/s
Ethernet:
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
ASUS LANGuard
Wireless & Bluetooth:
Wi-Fi 6E (2×2, 6GHz-ready), Bluetooth® 5.3
USB:
Rear USB (Total 8 ports)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 9 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 9 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
Audio:
Realtek 7.1 Surround, Audio shielding, premium capacitors, dedicated PCB layers

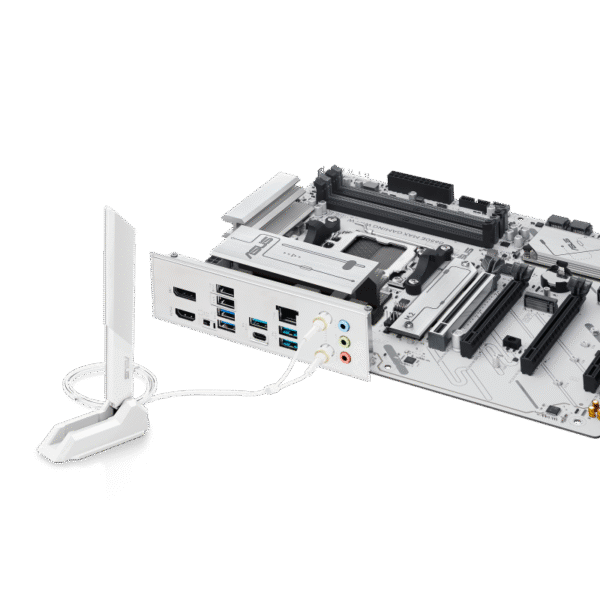

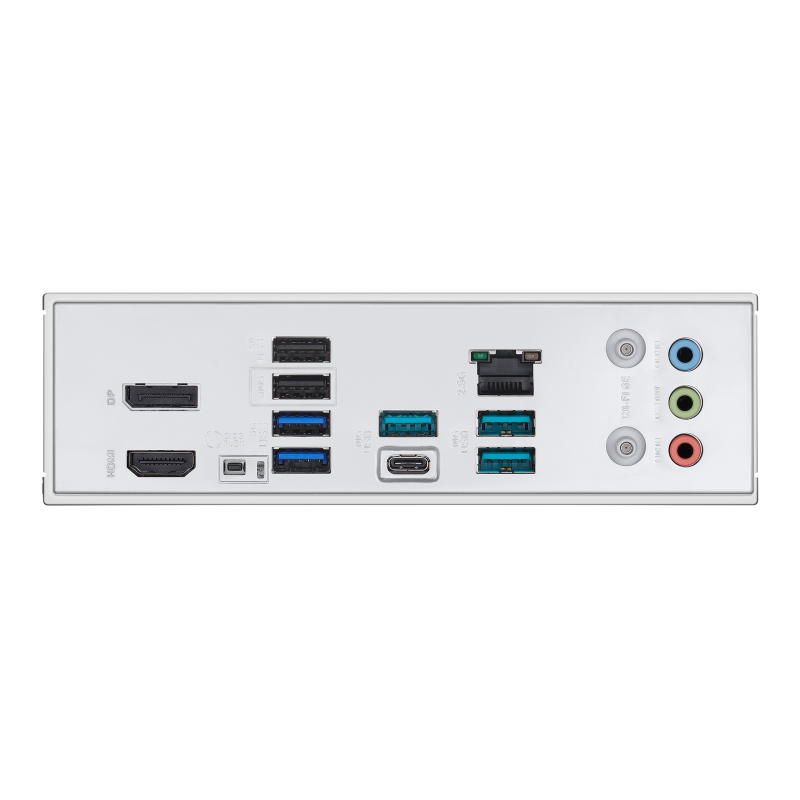

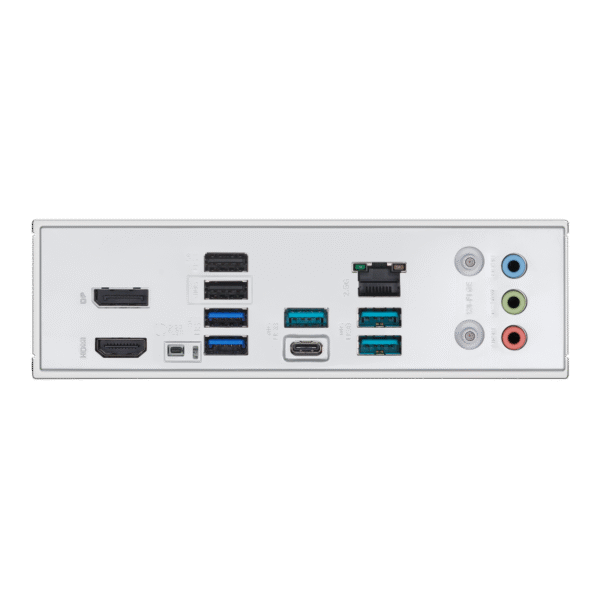

Back Panel I/O Ports:
- 1 x USB 10Gbps port (1 x USB Type-C®)
- 3 x USB 10Gbps ports (3 x Type-A)
- 2 x USB 5Gbps ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Wi-Fi module
- 1 x Realtek 2.5Gb Ethernet port
- 3 x Audio jacks
- 1 x BIOS FlashBack™ button
Internal I/O Connectors:
- Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers - Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connectors
1 x 4-pin +12V CPU Power connectors - Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports - USB
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports - Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
1 x Thunderbolt™ (USB4®) header
Special Features:
- ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage protection
– SafeSlot
– Stainless-steel back I/O - ASUS Q-Design
– Q-Antenna
– Q-DIMM
– Q-LED Core
– Q-Slot - ASUS Thermal Solution
– Flexible M.2 heatsink
– VRM heatsink design - ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Pre-mounted I/O shield
– SafeSlot - Aura Sync
– Addressable RGB Gen 2 headers
Software Features:
- ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
– Two-Way AI Noise Cancelation
AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner
ASUS Driver Hub
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial) - UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS:
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor:
ATX Form Factor
12-inch x 9.6 inch (30.5 cm x 24.4 cm)
12-inch x 9.6 inch (30.5 cm x 24.4 cm)
