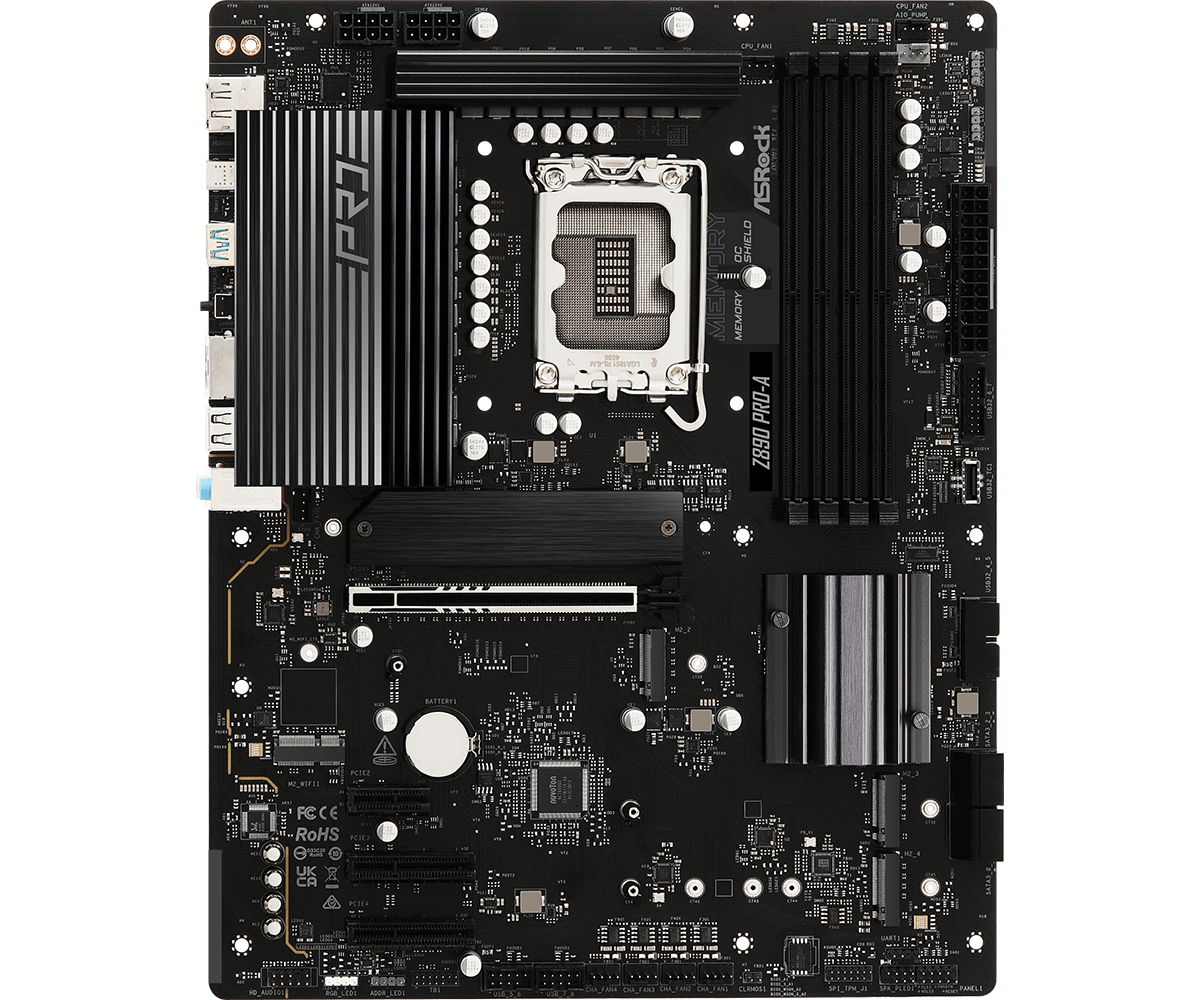

ASROCK Z890 Pro-A Motherboard DDR5
Unique Feature
- Superb Productivity
– PCIe Gen5 (Graphics, M.2)
– Dual Channel DDR5
– Thunderbolt™ 4 Type-C Port (40 Gb/s)
- Rock-Solid Durability
– 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT
– Memory OC Shield
- Ultrafast Connectivity
– 2.5G LAN
- EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
- EZ Troubleshooter
– ASRock Post Status Checker
CPU Support:
Intel® Core™ Ultra Processors (Series 2), Hybrid Tech, Turbo Boost Max 3.0
Chipset:
Intel® Z890
Memory:
4x DDR5 DIMMs, Dual Channel, up to 9066+ MHz (OC), 256GB Max
BIOS:
256Mb UEFI w/ GUI, BIOS Flashback
Graphics:
HDMI 2.1, DisplayPort 1.4, Thunderbolt™ 4 Type-C
Audio:
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN:
Realtek Dragon RTL8125BG 2.5G LAN
Slots:
CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode*
– 1 x PCIe 4.0 x1 Slot (PCIE2)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode*
– 1 x PCIe 4.0 x1 Slot (PCIE2)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Storage:
CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
– 4 x SATA3 6.0 Gb/s Connectors
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
– 4 x SATA3 6.0 Gb/s Connectors
RAID:
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB:
1x Thunderbolt™ 4 Type-C, 2x Gen2x2 Type-C, 1x Gen2 Type-A, 6x Gen1, 8x USB2
Rear Panel I/O:
- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone
Accessories:
– 1 x I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket
Form Factor:
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 2oz Copper PCB
– 2oz Copper PCB
OS:
Windows 11 64-bit
LINK:ASRock Z890 Pro-A
